Replacement Brake Parts

INDUSTRIAL BRAKE REPLACEMENT PARTS

EC&M & SQUARE-D:

  •  EC&M No. 5 Type WB Brake, Folio 2
  •  EC&M No. 10 Type WB Brake, Folio 2
  •  EC&M No. 20 Type WB Brake, Folio 2
  •  EC&M No. 22 Type WB Brake, Folio 1
  •  EC&M No. 30 Type WB Brake, Folio 2
  •  EC&M No. 40 Type WB Brake, Folio 2
  •  EC&M No. 50 Type WB Brake, Folio 2
  •  Class 5010 8" Type WB Brake, Folio 5, DC Operated
  •  Class 5010 10" Type WB Brake, Folio 5
  •  Class 5010 13" Type WB Brake, Folio 5
  •  Class 5010 16" Type WB Brake, Folio 5
  •  Class 5010 19" Type WB Brake, For DC Operation
  •  Class 5010 23" Type WB Brake, Folio 5
  •  Class 5010 30" Type WB Brake, Folio 6, DC Operated
  •  Class 5010 8" Type F Series A
  •  Class 5010 10" Type F Series A
  •  Class 5010 13" Type F Series A
  •  Class 5010 16" Type F Series A
  •  Class 5010 19" Type F Series A
  •  Class 5010 23" Type F Series A
  •  Class 5010 30" Type F Series A
  •  Class 5010 10" Type F Series B
  •  Class 5010 13" Type F Series B
  •  Class 5010 16" Type F Series B
  •  Class 5010 23" Type F Series B
  •  Class 5060 13" Type AT Adjustable Torque Brake
  •  Class 5060 16" Type AT Adjustable Torque Brake

CUTLER-HAMMER:

  •  No. 503 8" Type M Brake
  •  No. 503 10" Type M Brake
  •  No. 503 14" Type M Brake
  •  No. 503 18" Type M Brake
  •  No. 503 21" Type M Brake
  •  No. 503 24" Type M Brake
  •  No. 503 30" Type M Brake
  •  No. 505 8" D-C Magnetic Brake
  •  No. 505 10" D-C Magnetic Brake
  •  No. 505 13" D-C Magnetic Brake
  •  No. 505 16" D-C Magnetic Brake
  •  No. 505 19" D-C Magnetic Brake
  •  No. 505 23" D-C Magnetic Brake
  •  No. 505 30" D-C Magnetic Brake


WESTINGHOUSE:

  •  Westinghouse Type DI 062-F Magnetic Brake
  •  Westinghouse Type DI 104-F Magnetic Brake
  •  Westinghouse Type DI 135-F Magnetic Brake
  •  Westinghouse Type DI 167-F Magnetic Brake
  •  Westinghouse Type DI 198-F Magnetic Brake
  •  Westinghouse Type DI 239-F Magnetic Brake

GEMCO:

  •  Gemco Type CB15 4.5" Magnetic Shoe Brake
  •  Gemco Type CB35 5.5" Magnetic Shoe Brake
  •  Gemco Type CB75 7.0" Magnetic Shoe Brake
  •  Gemco Type CB110 7.0" Magnetic Shoe Brake
  •  Gemco Type CB160 10.0" Magnetic Shoe Brake
  •  Gemco Type TM43 4.5" Magnetic Shoe Brake
  •  Gemco Type TM63 6.0" Magnetic Shoe Brake
  •  Gemco Type TM83 8.0" Magnetic Shoe Brake
  •  Gemco Type TM1035 10.0" Magnetic Shoe Brake
  •  Gemco Type TM1355 13.0" Magnetic Shoe Brake
  •  Gemco Type TM1665 16.0" Magnetic Shoe Brake
  •  Gemco Type TM1985 19.0" Magnetic Shoe Brake
  •  Gemco Type TM2311 23.0" Magnetic Shoe Brake
  •  Gemco Type TM3014 30.0" Magnetic Shoe Brake
  •  Gemco Electro Thrust (Model ET8) Shoe Brake
  •  Gemco Electro Thrust (Model ET10) Shoe Brake
  •  Gemco Electro Thrust (Model ET13) Shoe Brake
  •  Gemco Electro Thrust (Model ET16) Shoe Brake
  •  Gemco Electro Thrust (Model ET19) Shoe Brake
  •  Gemco Electro Thrust (Model ET23) Shoe Brake
  •  Gemco Hydraulic (Type H) Shoe Brake - 6x3 (J023020)
  •  Gemco Hydraulic (Type H) Shoe Brake - 8x3 (J002779)
  •  Gemco Hydraulic (Type H) Shoe Brake - 10x4 (J002926)
  •  Gemco Hydraulic (Type H) Shoe Brake - 14x6 (J002929)
  •  Gemco Hydraulic (Type H) Shoe Brake - 18x8 (J002932)
  •  Gemco Hydraulic (Type HM) Shoe Brake - 6x3 (J024579)
  •  Gemco Hydraulic (Type HM) Shoe Brake - 8x3 (J003205)
  •  Gemco Hydraulic (Type HM) Shoe Brake - 10x4 (J034780)
  •  Gemco Hydraulic (Type HM) Shoe Brake - 14x6 (J034735)
  •  Gemco Hydraulic (Type HM) Shoe Brake - 18x8 (J040065)

MONDEL:

  •  Mondel 300M AIST Mill Duty Shoe Brakes - 16"
  •  Mondel MBT/E Electric Shoe Brakes - 13"

GEMCO
INDUSTRIAL BRAKE REPLACEMENT PARTS

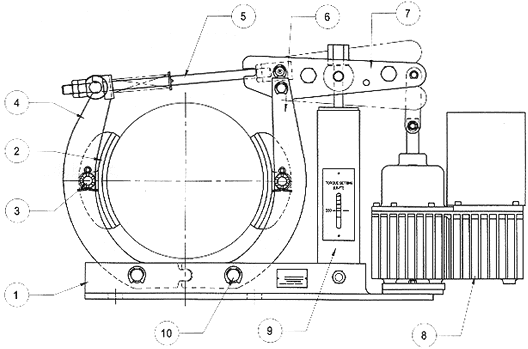

Gemco Electro Thrust (Model ET13) Shoe Brake



  ITEM     OEM PART     DESCRIPTION     QTY
1
2
3
4
5
5A
6
7
8
8A
9
9A
10
X
X
AME-E013194
AME-E013025
AME-E013053
AME-PM0139600
AME-E013228
AME-E013240
AME-E013225
AME-E013229
AME-FACTORY
AME-PSD0146500
AME-E013230
AME-E013214
AME-E013231
AME-01591317
AME-01591318
  Base
  Brake Shoe/Lining
  Shoe Bolt
  Outer Shoe Arm (1PR)
  Tie Rod Assembly-Std
  Self-Adjust Tie Rod Assy
  Inner Shoe Arm (1PR)
  Force Arm Assembly
  Electro-Thrust Actuator
  Actuator Rep. Kit
  Spring Case Assembly
  Main Spring
  Pin Kit
  Brake Fluid (for ET Brake)
  Brake Fluid (for ET Brake)
1
2
2
1
1
1
1
1
1
1
1
1
1
1
1
